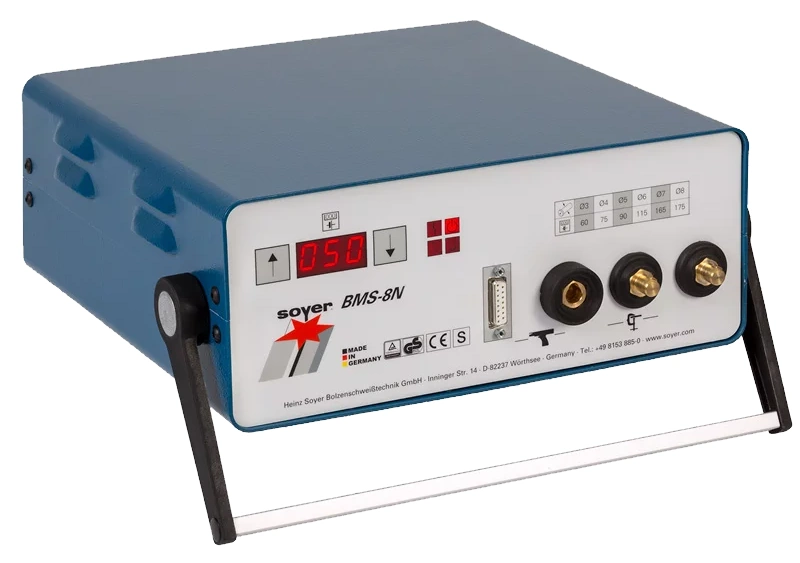

BMS-8N Stud Welder
The new BMS-8N SOYER stud welder with microprocessor control is a top-quality product meeting highest requirements due to operating convenience, low weight, high efficiency, compact design and absolute safety. One of the remarkable features of the BMS-8N stud welder is its very favourable price/efficiency ratio.
Technical Specifications
Welding Range
M3 – M8 or Ø3 – 8 mm with steel, stainless steel, aluminium and brass (M8 or Ø8 in aluminium and brass conditionally, depending on the respective requirements)
Welding Process
Capacitor discharge process as per EN ISO 14555
Standard Gun
PS-1 K or PS-1 positioning welding gun
Power Source
Capacitor battery
Charging Capacity
66,000 µF (optional: 99,000 µF available)
Charging Voltage
50 – 200 V, infinitely variable up/down
Welding Time
0.001 – 0.003 seconds
Welding Sequence
Up to 20 studs/min, depending on stud diameter
Mains Supply
115/230 V, 50/60 Hz, 16/10AT (internally adjustable)
Welding Cable
3 m highly flexible
Earth Cable
2 x 3 m highly flexible
Dimensions (w x h x l)
300 mm x 120 mm x 320 mm
Weight
10 kg
Colour
Blue
Subject to technical changes
